Get the performance of a larger grading machine right from the seat of your skidsteer loader and take advantage of your loader's inherent manoeuvrability to level ground with unparalleled ease and efficiency: forwards and backwards!

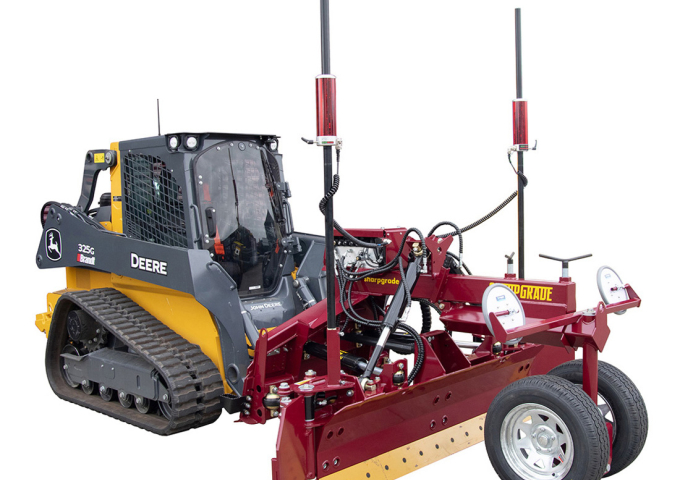

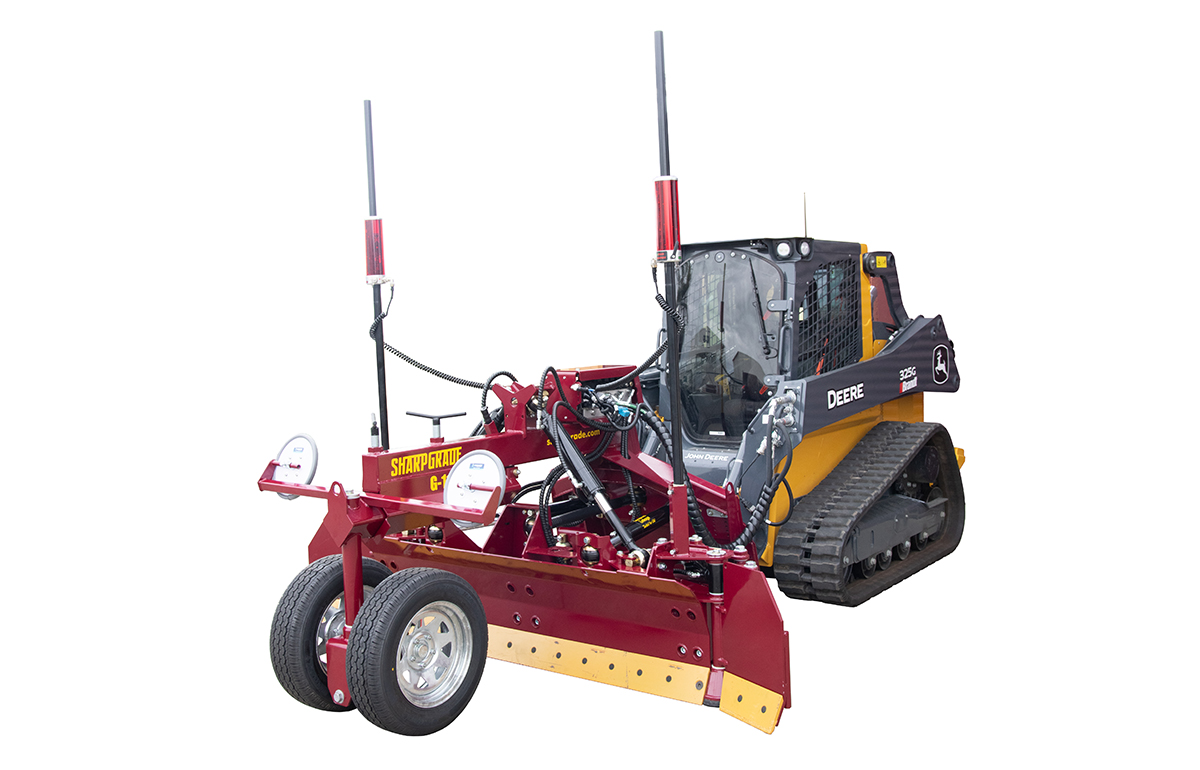

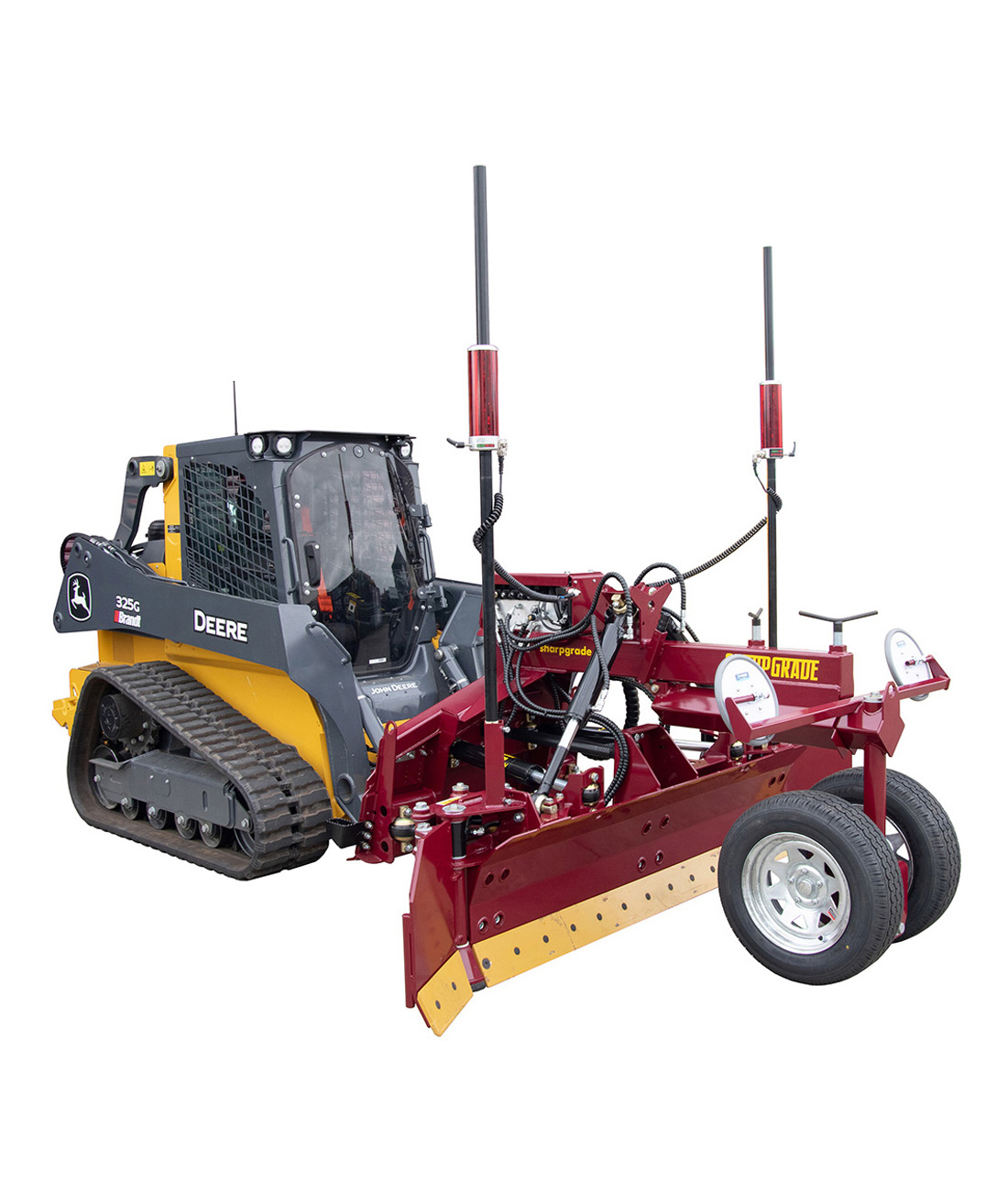

The G116 comes with patented sealed, shielded and lifetime lubricated QuadRod linkages, adjustable hitch plate, underslung walking beam and retracting front chassis. The SharpGrade G116 is built for hard work. Suited to large frame machines in the 75-90 HP bracket, ideal for heavy stone and aggregate work, large flat work, road grading, kerb & footpath prep, subdivisions, etc, especially with 3D control.
Benefits:
Accurate grading made easy
The SharpGrade Grader Blade enables you to accurately level to within less than 3mm (1/8"). Using a SharpGrade Grader Blade is up to ten times faster than levelling using a skidsteer with standard bucket attachment.
Our standard QuadGrade 2D Laser Control system integrates with any 3D system, allowing you to easily grade complex contours with several gradients, diverging offset crown and different cambers directly from the control of the SharpGrade.
Fast Results
Designed specifically to work on skidsteer loaders, the SharpGrade Grader Blade is the first in the world to work in forward and reverse, for optimal efficiency. Twin pivoting blades give the ability to cut, carry, trim, spread and finish in one pass, in either direction, for speed and control.
Robust, reversible hydraulic side wings give you the ability to carry material forwards or backwards when you need it.
A curved mouldboard ensures wet material can be easily rolled. Operated from your machine's hydraulic system, in-cab adjustments are a breeze and levelling is up to ten times faster than levelling using a skidsteer and standard bucket attachment.
Plug and play attachment
The SharpGrade Grader Blade is quick and easy to attach to your machine. No tools required, simply clip the unit into place and attach the hoses and the QuadGrade 2D system comes pre-tuned, ready to start work.
Maintenance free performance
Designed and built with longevity in mind, the SharpGrade Grader Blade features induction hardened pins, self-lubricated bushes and dirt seals in all moving joints, so it won’t let you down when time equals money. The patented, sealed QuadRod system keeps the blade rigid and accurate at all times, with low maintenance. High performance, proportional hydraulic valve, configurable to open & closed center, with built in relief protects the system from overload. Valves feature manual override capability to allow easy diagnosis if there is ever a problem.
Standard Features:
QuadGrade 2D system with adjustable grade height receivers: Electronically adjust the grade height 1mm (1/25”) at a time without leaving your seat. Increased receiver range means you stay on grade longer. It is highly accurate and easy to use, the blade can be manually operated by the 4 in 1 control at any time, with or without the laser control connected. Compatible with all large frame skid steers.
Greased for life, low maintenance design. Induction hardened pins, permanently sealed, self-lubricated HardiLube bushes and dirt seals in all moving joints provide a long low maintenance life.
Unique QuadRod Linkage. The Patented QuadRod 3 system gives unparalleled rigidity, rated to 120 HP machines. Utilising 3 x Heavy Duty link arms, the outboard cylinders are directly connected to the outer edges of the blade, achieving the ultimate in accuracy. All joints are lifetime sealed, lubricated and maintenance free, with no greasing required.
Adjustable hitch plate: Sets SharpGrade perfectly level with boom fully down, to provide the ultimate in rigidity. This reduces track and tyre wear and boom and linkage wear, as the SharpGrade is pushing on the front of the machine, instead of transferring the load to the rear of the machine through the linkages. This is especially important with vertical lift machines. Adjustable hitch plate keeps chassis perpendicular with the ground, so side wings stay flat throughout their travel. Rear viewing ports allow operator to see the rear blade.
Twin large parabolic mirrors: See the front blade and both front wing tips for confident grading in confined areas, along walls, kerbs or foundations.
Laminated, galvanised graduated laser poles: Quick, easy setup of laser receivers with our built-in measuring tapes on the laser poles. Available in imperial and metric dimensioning, no tape measure required. Galvanised, laminated poles reduce vibration.
Twin blades: Front blade is fixed and reversible. Rear blade is pivoting and reversible. Pivoting blade reduces packing between the blades.
Underslung Walking Beam: Patented underslung walking beam reduces wheel scuff when turning.
Tyres: 175/50/R13C with labyrinth seals on wheel bearings keeping grit out.
Optional Features
Removable laser poles: quickly change from long to short poles for indoor work or working in height restricted areas. No tools required.
Direct Connect: Connect the SharpGrade Grader Blade to the base machine via the 14-pin plug on the boom, the operator can directly control the SharpGrade from the extra buttons on the handles. We have Direct Connect kits available for most brands, including ASV, Bobcat, Case, Cat, Deere, Kubota, Takeuchi & Wacker Neuson.
Aligned QuadGrade Sonic system: Patented Aligned Sonic maintains cross fall when the blade is articulated. Reads a string line, kerb lip, or grade match to a smooth surface for grades not possible to achieve with a laser. Plugs directly in and reads off the control panel. Height and slope adjustable from cab.
Other Control Systems: Compatible with all 3D control systems.
