Benefits:

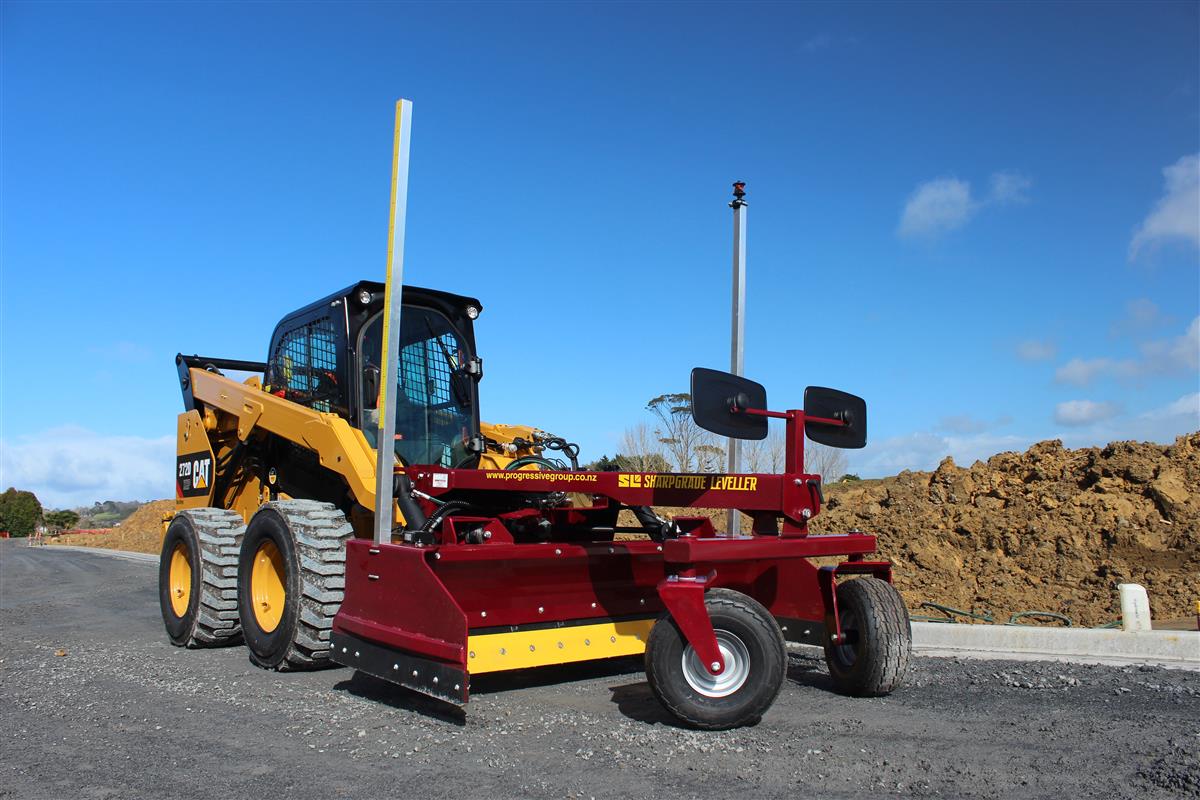

The SharpGrade Box Blade Leveller enables you to accurately level to within 3mm (less than 1/10").  Using a SharpGrade Box Blade is up to ten times faster than levelling using a skidsteer with standard bucket attachment.

Optional otal Station or dual GNSS 3D systems allow you to easily grade complex contours with several gradients, diverging offset crown and different cambers directly from the control of the SharpGrade.

Accurate grading made easy

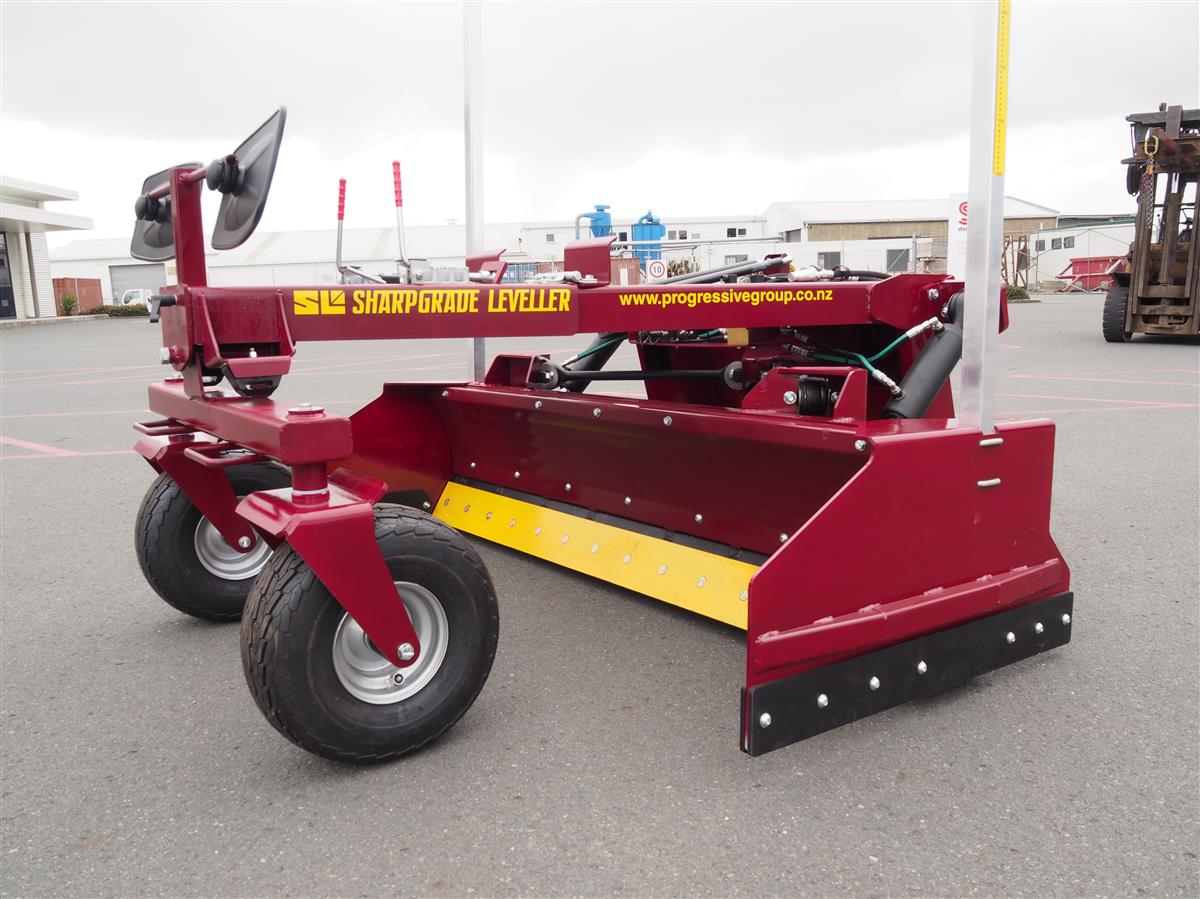

The SharpGrade Box Blade enables you to accurately level, to within 2mm, large areas or small tight spaces with ease and efficiency. Fit with dual or single axis laser levelling capability to ensure your levelling stays millimetre perfect over the whole job. Features such as knife edge side shields and  retracting wheel allow you to accurately trim right up to edges and get into tight corners. Large mirrors let you see exactly what's happening on the whole front blade, eliminating blind spots.

Fast results

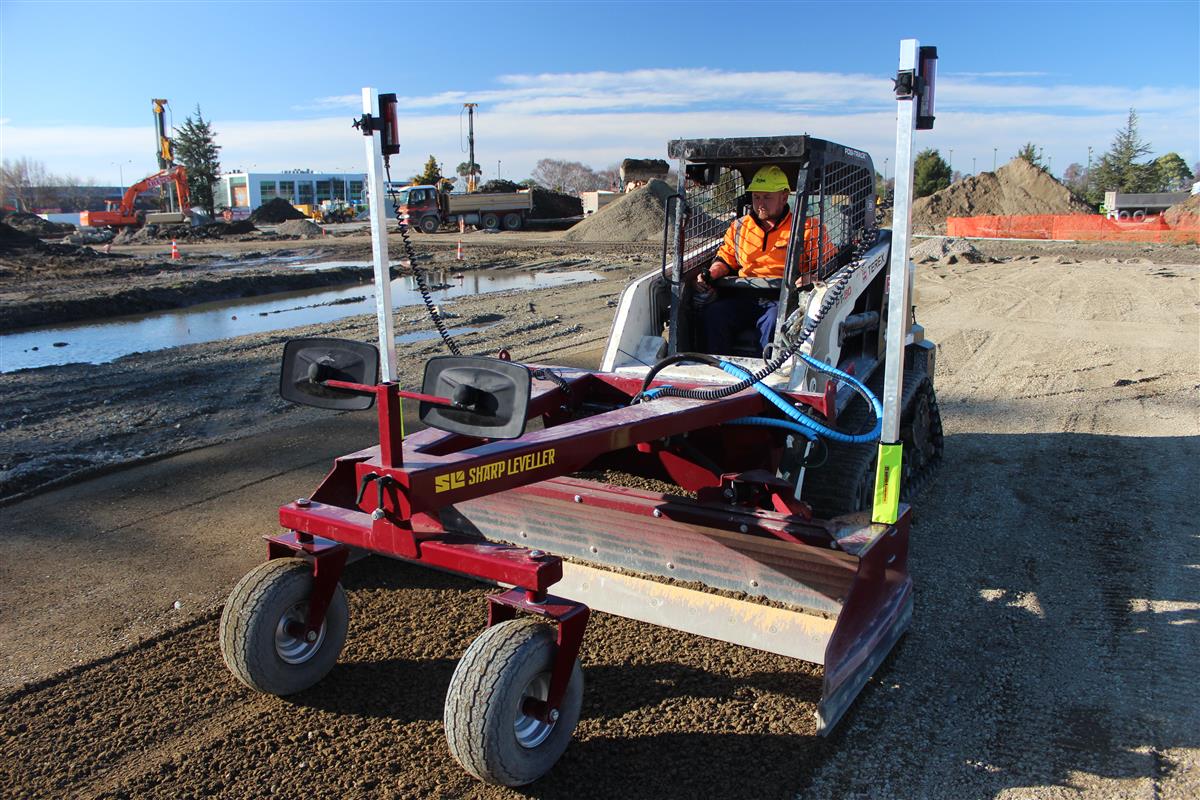

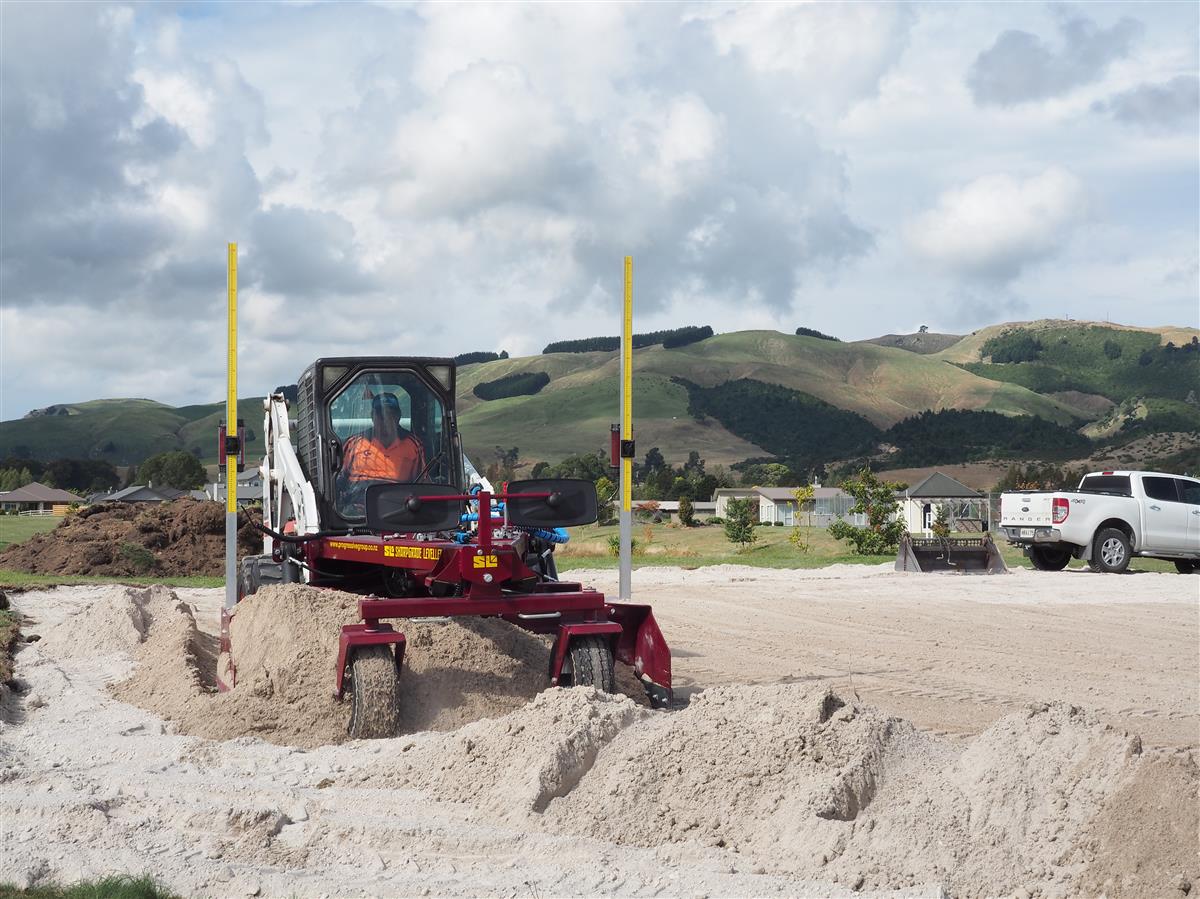

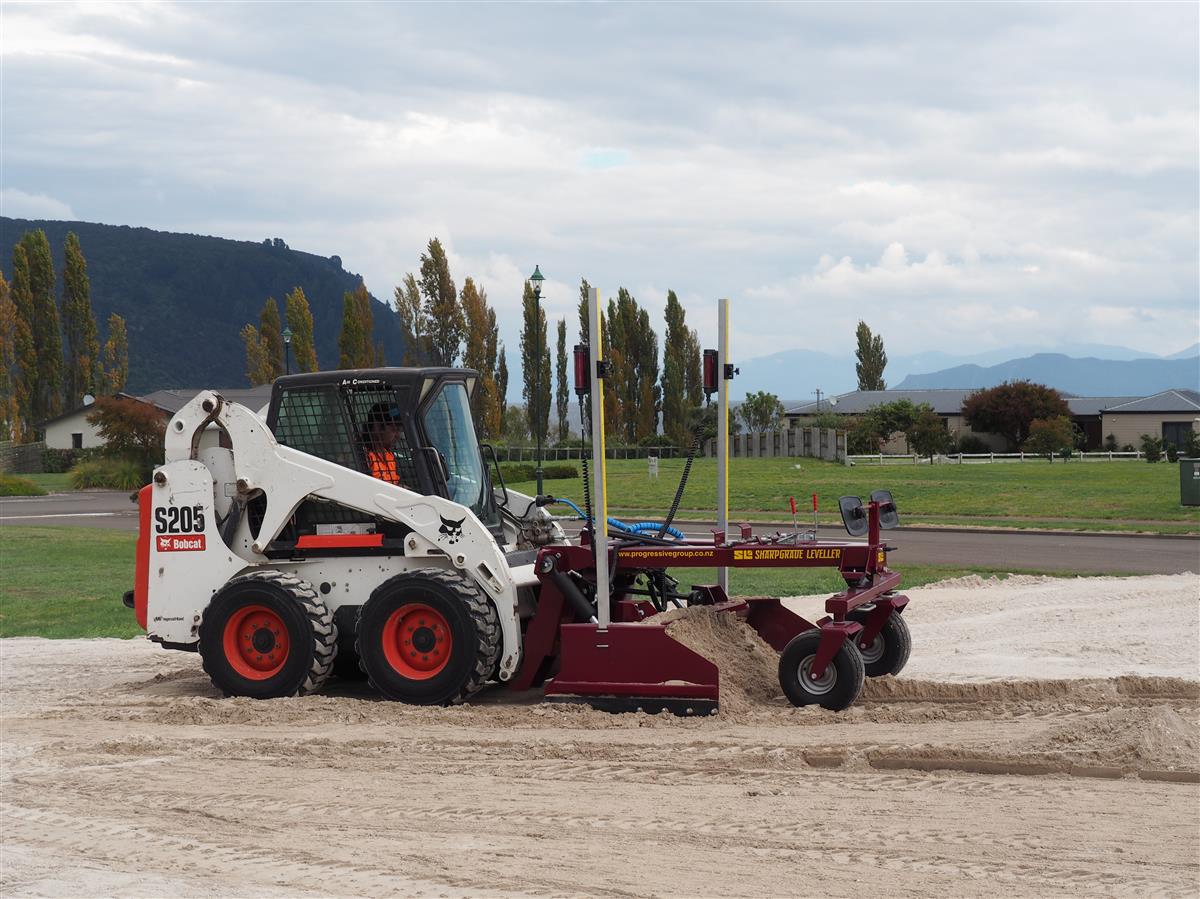

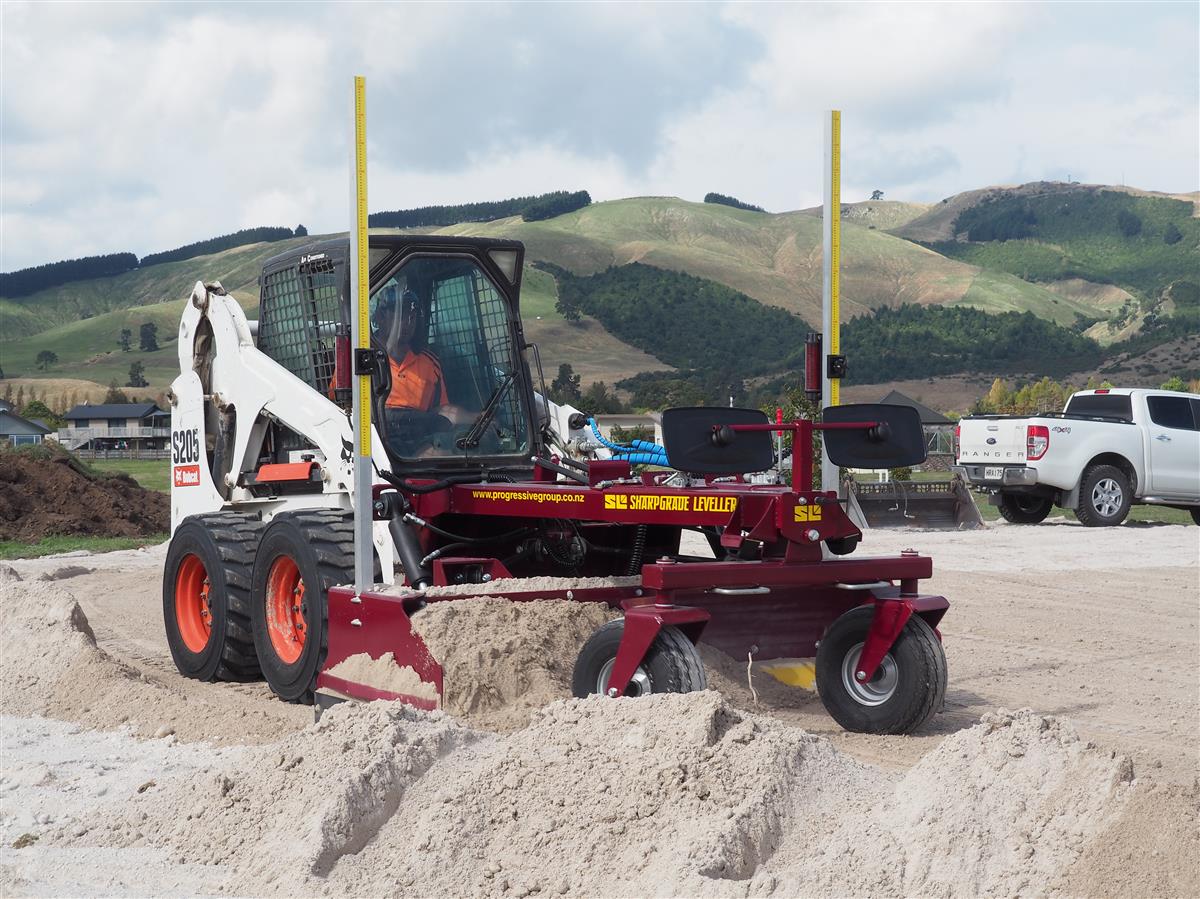

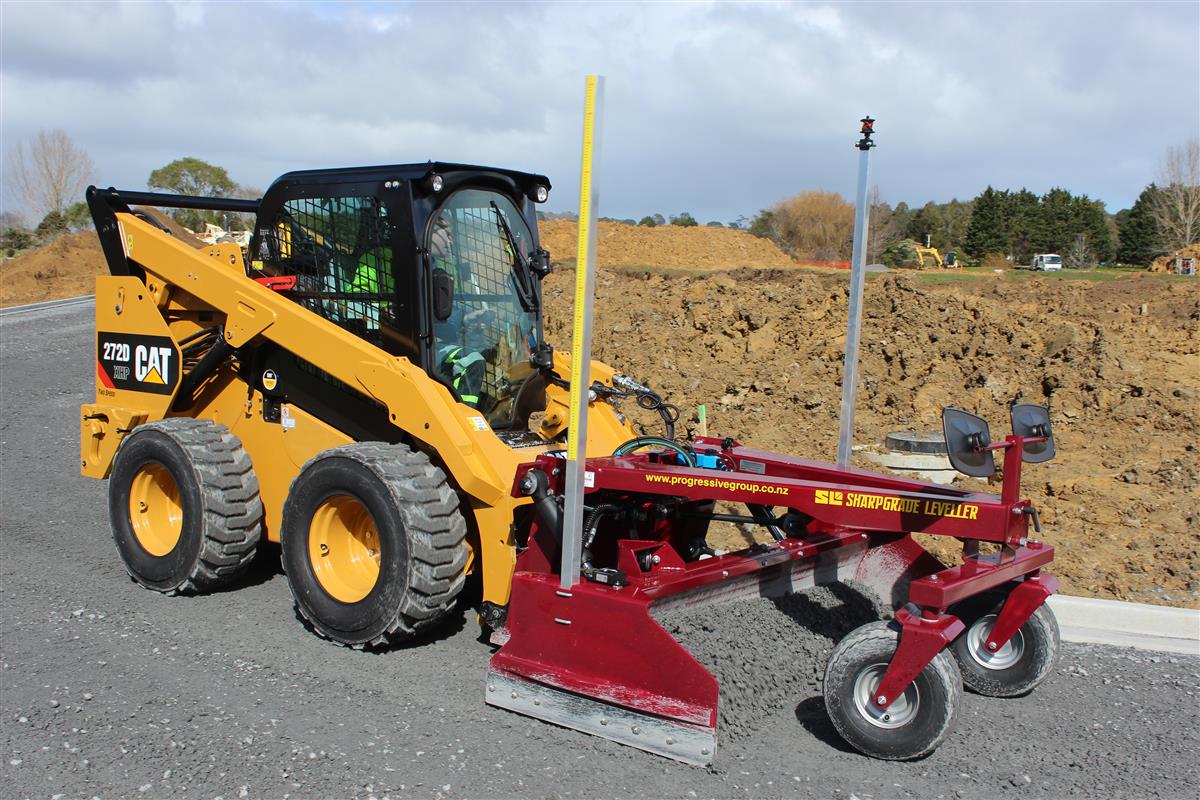

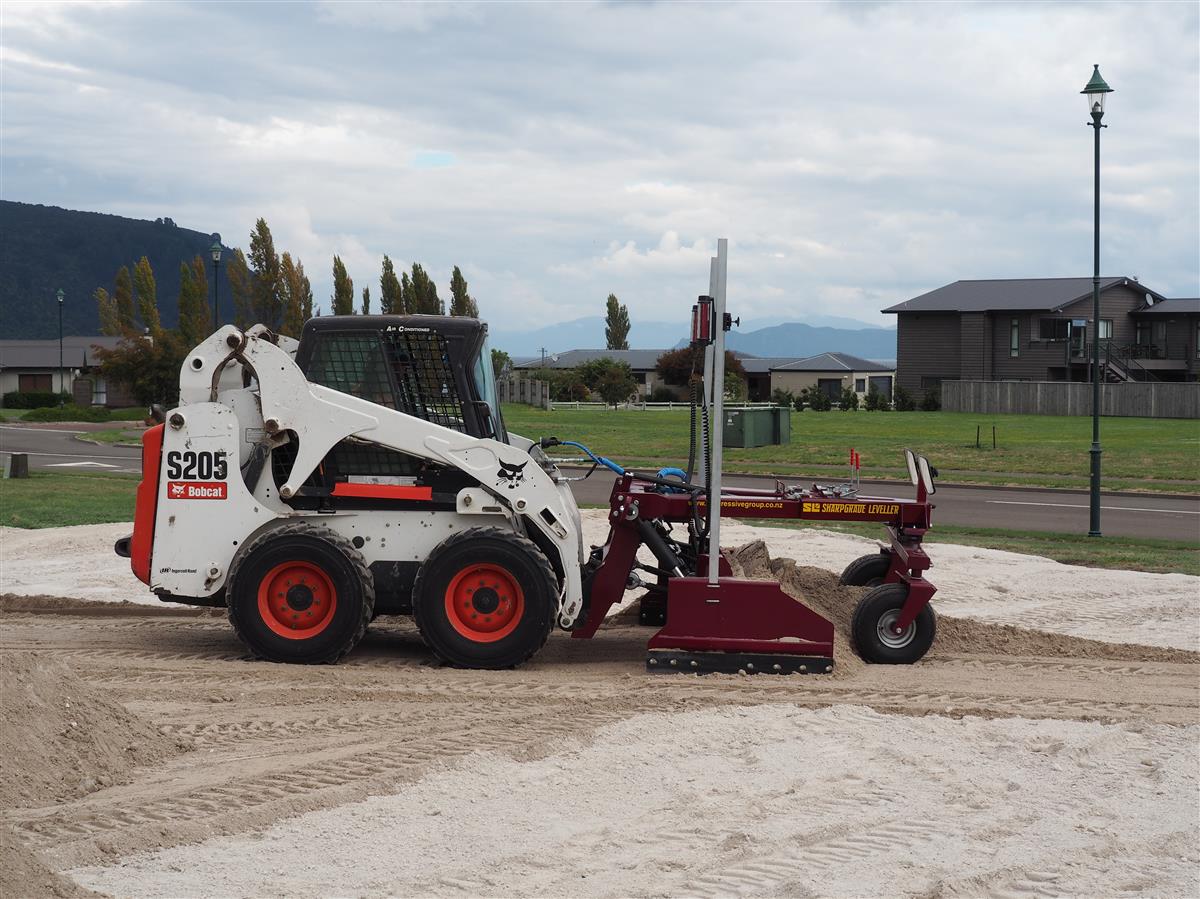

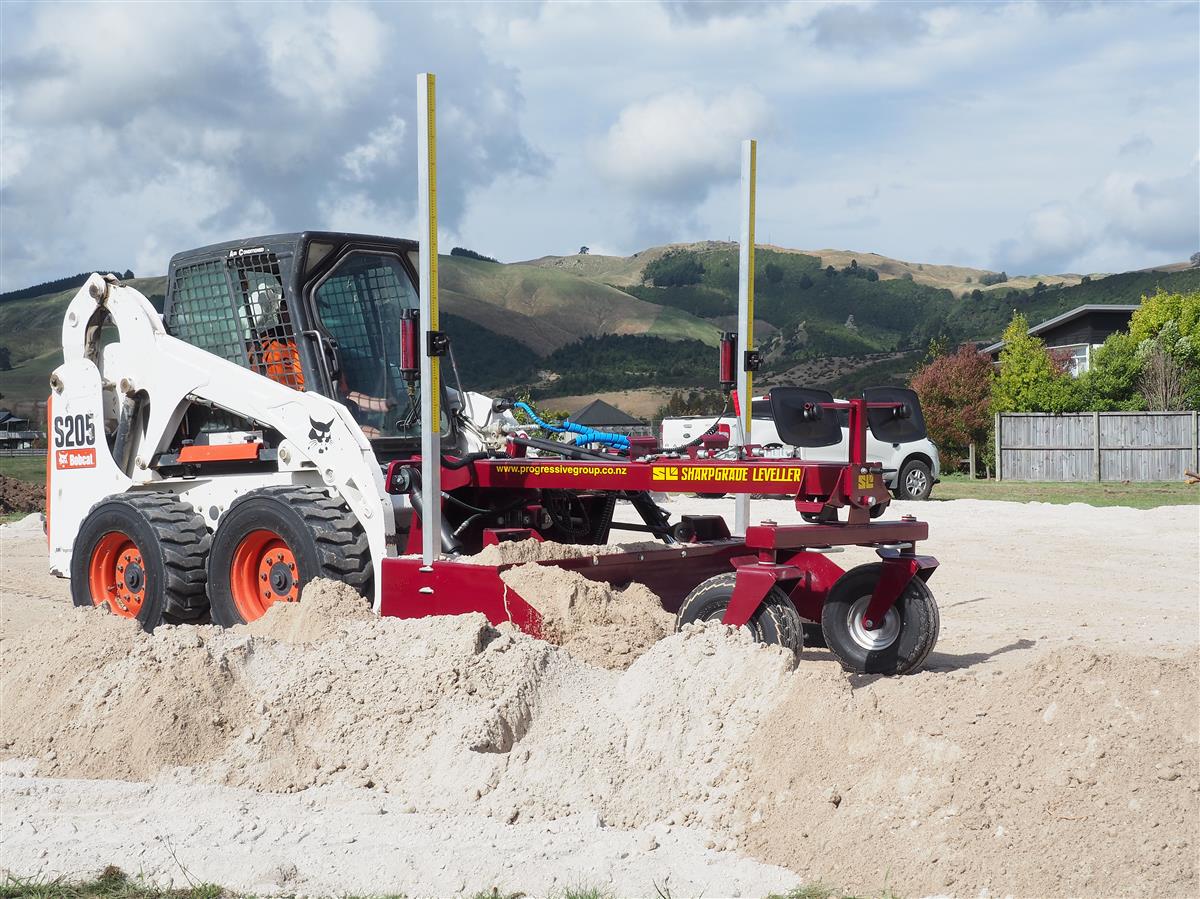

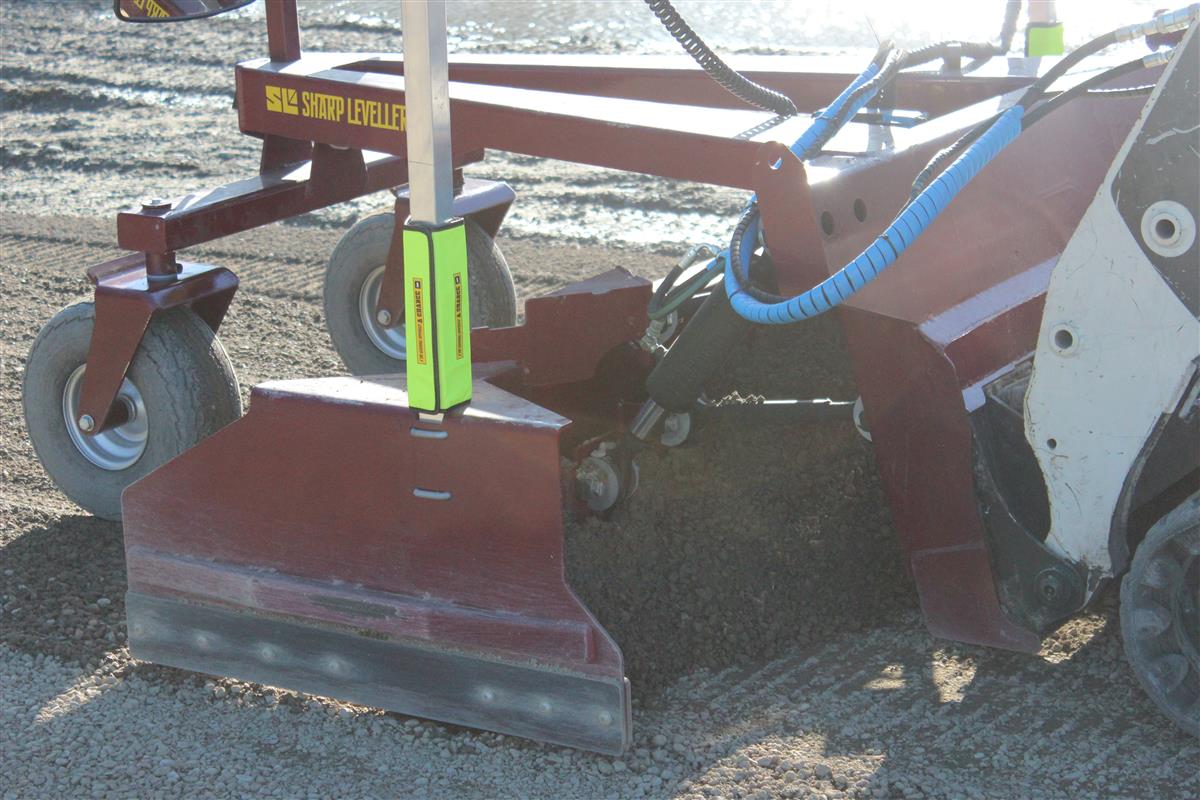

Designed specifically to work on skidsteer loaders the SharpGrade Leveller works in forward and reverse for optimal efficiency. Twin pivoting blades give the ability to cut, carry, trim, spread and finish in one pass, in either direction, for speed and control. A curved mouldboard ensures wet material can be easily rolled. Operated from your machine's hydraulic system, in-cab adjustments are a breeze and levelling is up to ten times faster than levelling using a skidsteer and standard bucket attachment.

Plug and play attachment

The SharpGrade Leveller is quick and easy to attach to your machine. No tools required, simply clip the unit into place and attach the hoses and you're ready to start work.

Maintenance free performance

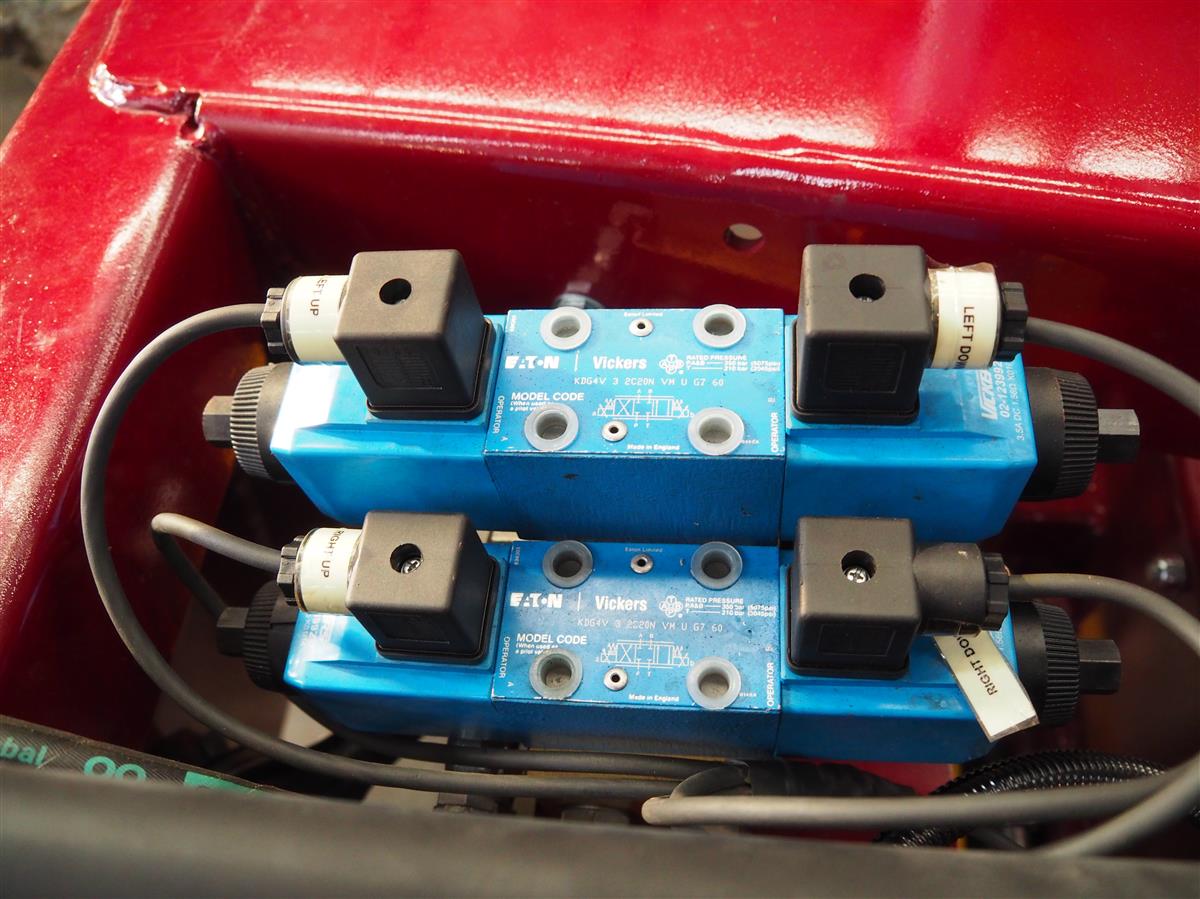

Designed and built with longevity in mind, the leveller features induction hardened pins, self-lubricated bushes and dirt seals in all moving joints, so it won’t let you down when time equals money. The patented, sealed QuadRod system keeps the blade rigid and accurate at all times, with low maintenance. Simple hydraulic valves with built in relief protects the system from overload.  Valves feature manual override capability to allow easy diagnosis if there is ever a problem.

Standard Features

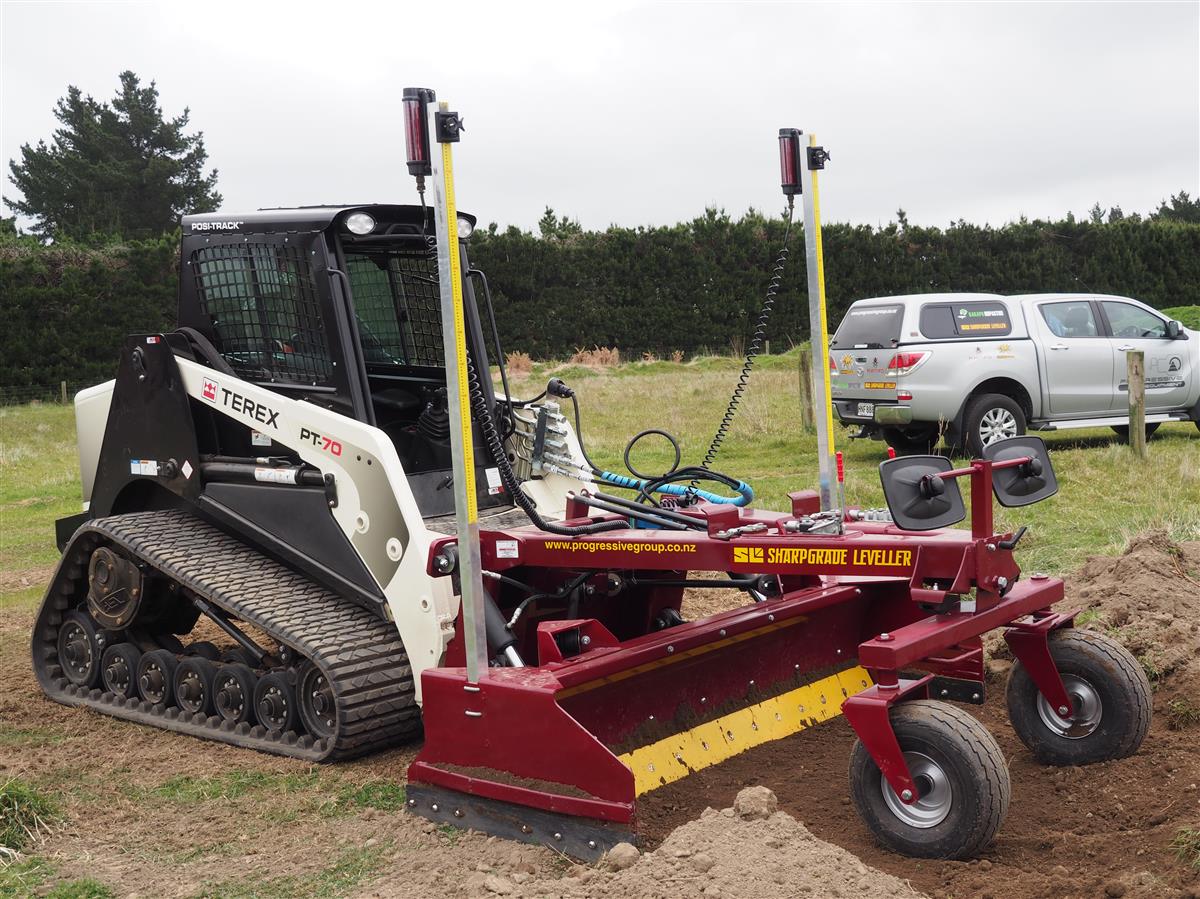

• QuadGrade 2D  with adjustable grade height receivers: We can offer our own 2D control system or sell our attachments bare. Our QuadGrade system electronically adjusts the grade height 2mm (1/10") at a time without leaving your seat.  Increased receiver range means you stay on grade longer. It is highly accurate and easy to use, the blade can be manually operated by the 4 in 1 control at any time, with or without the laser control connected. Compatible with skid steers, small wheel loaders and mini excavators
• Greased for life,  low maintenance design. Induction hardened pins, permanantly sealed, self-lubricated bushes and dirt seals in all moving joints provide a long low maintenance life.

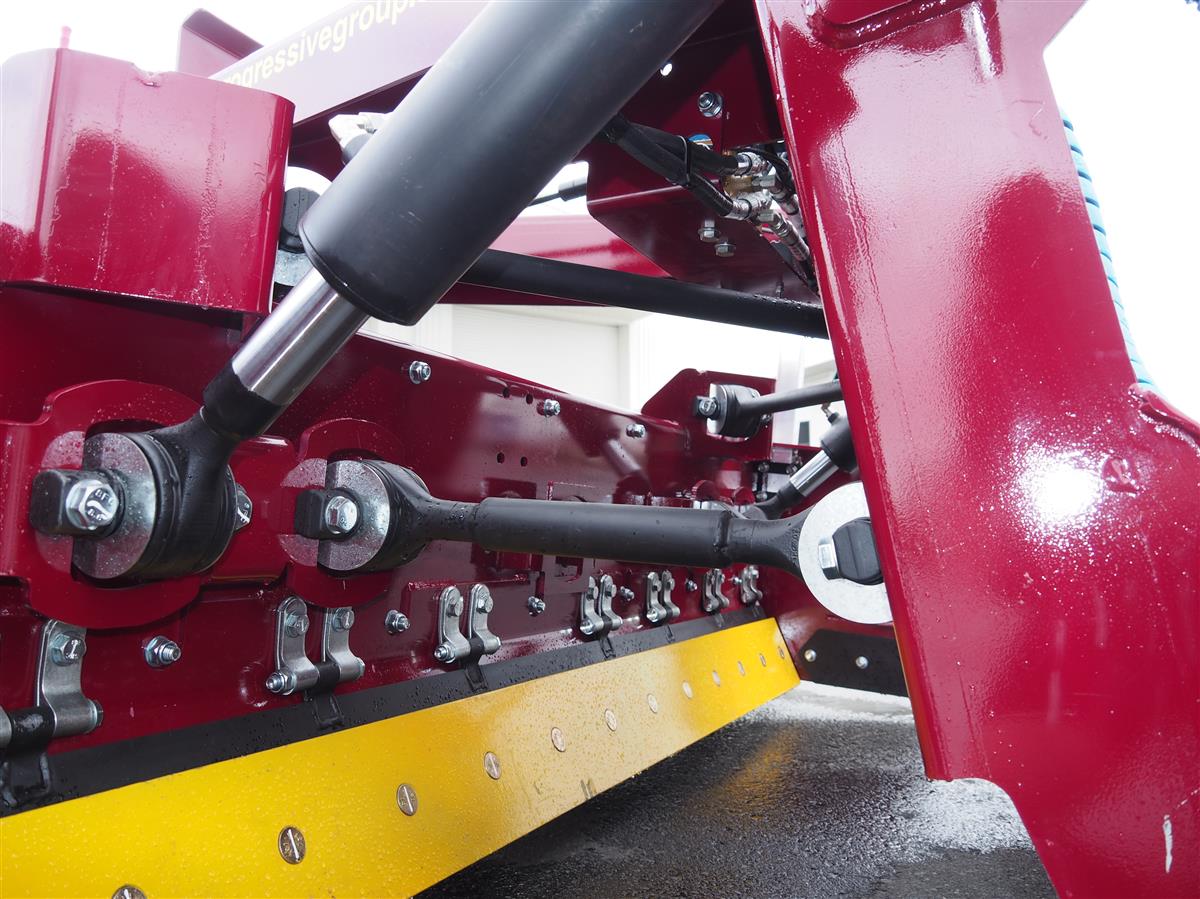

• Unique QuadRod Linkage.  The Patented QuadRod system gives unparallelled rigidity, allowing use on 100+ HP machines. With only 4 arms, the outboard cylinders are directly connected to the outer edges of the blade, achieving the ultimate in accuracy. All joints are lifetime sealed, lubricated and maintenance free, with no greasing required.

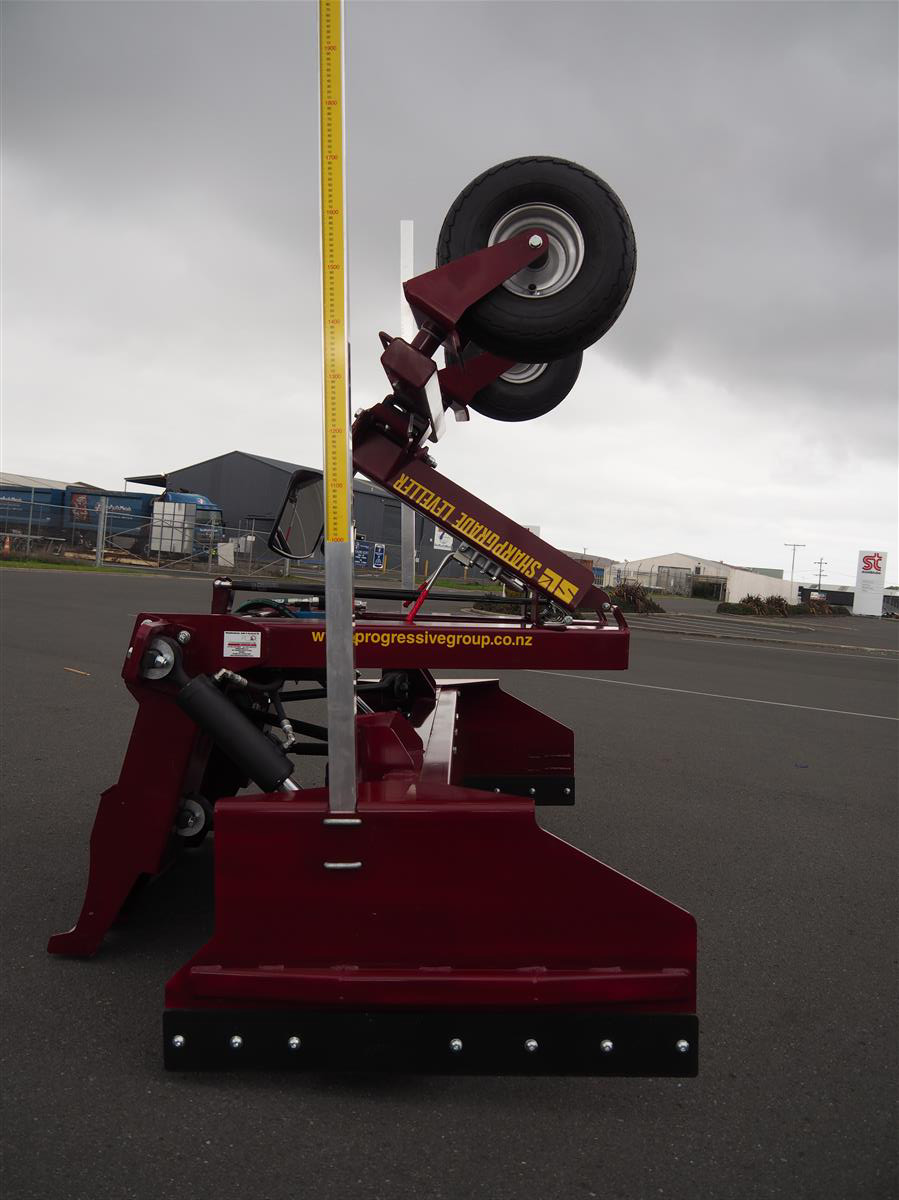

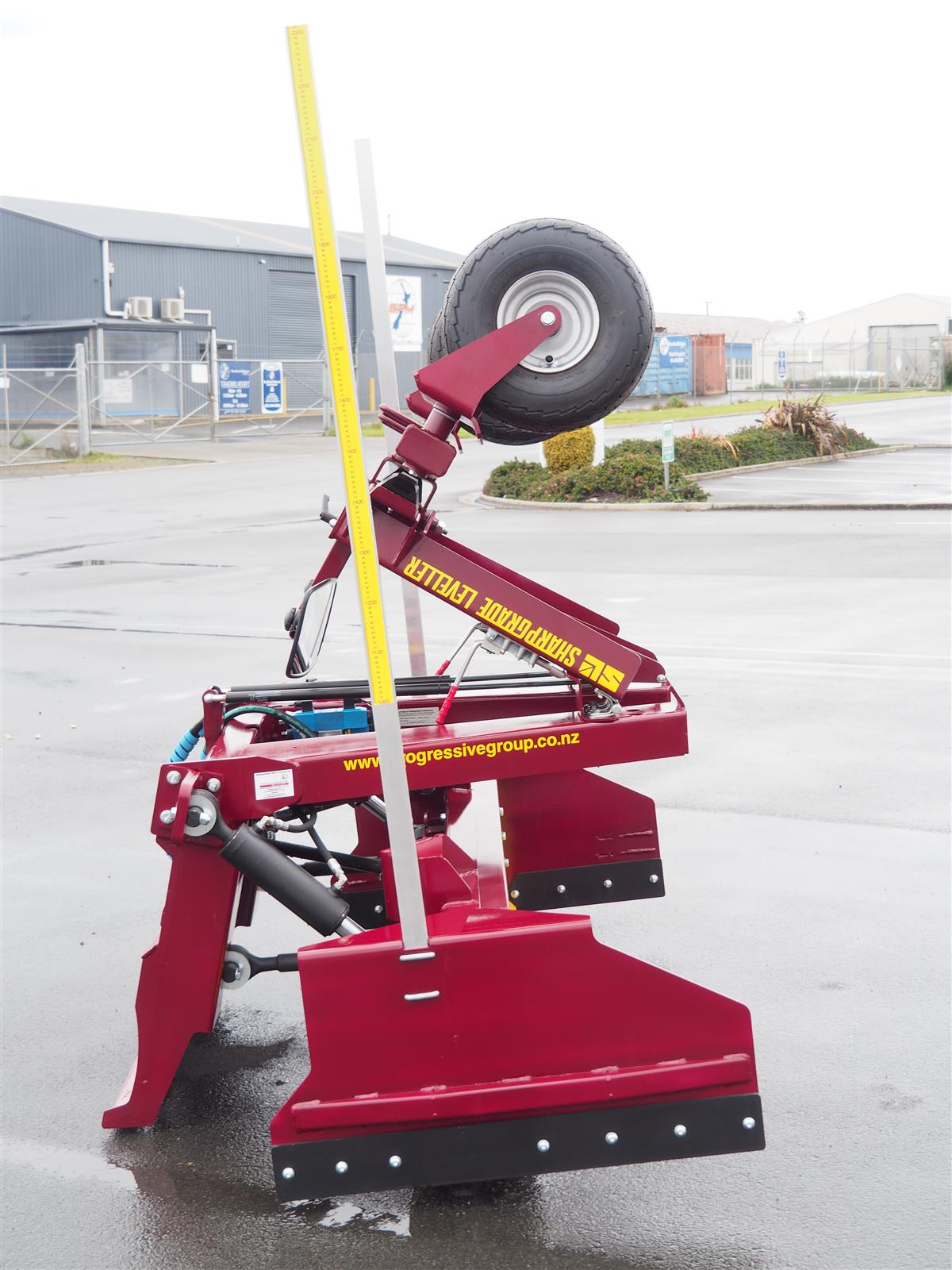

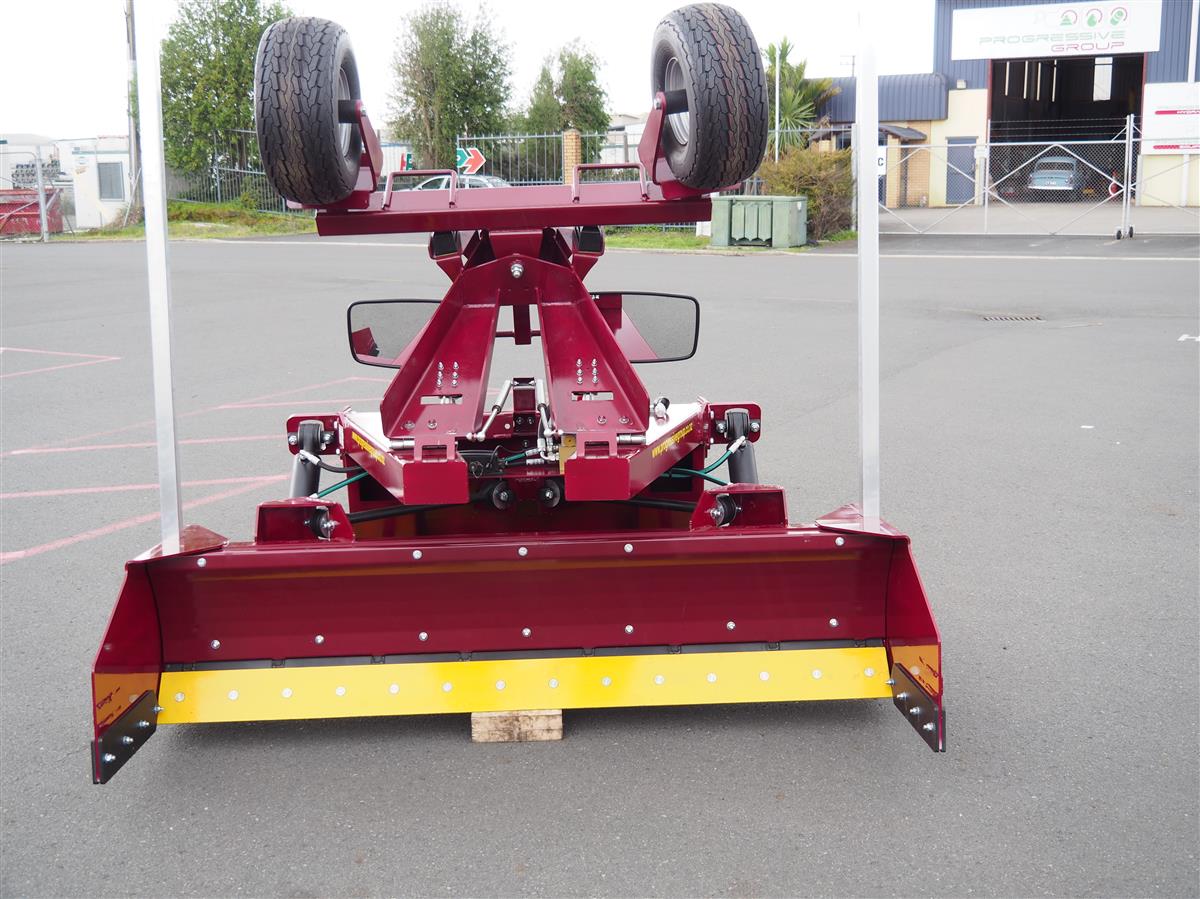

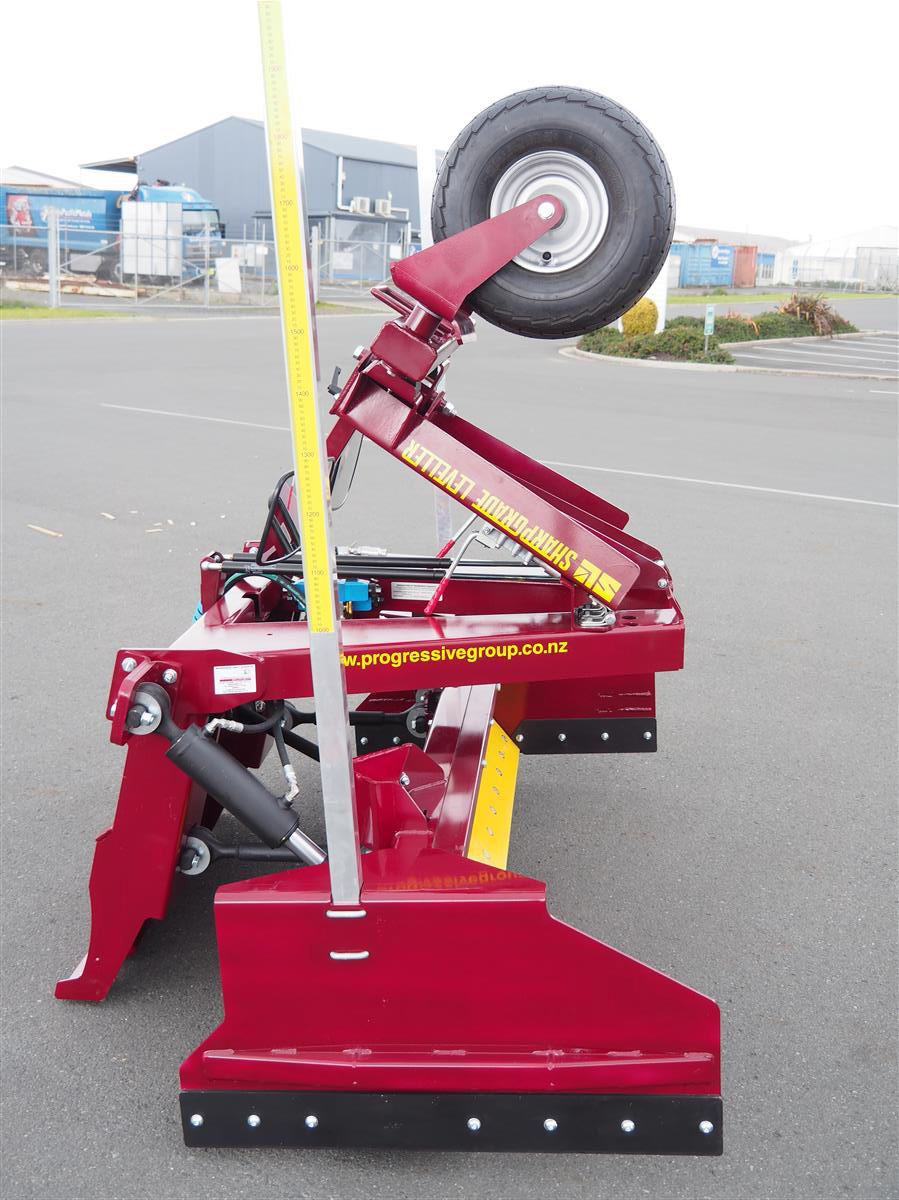

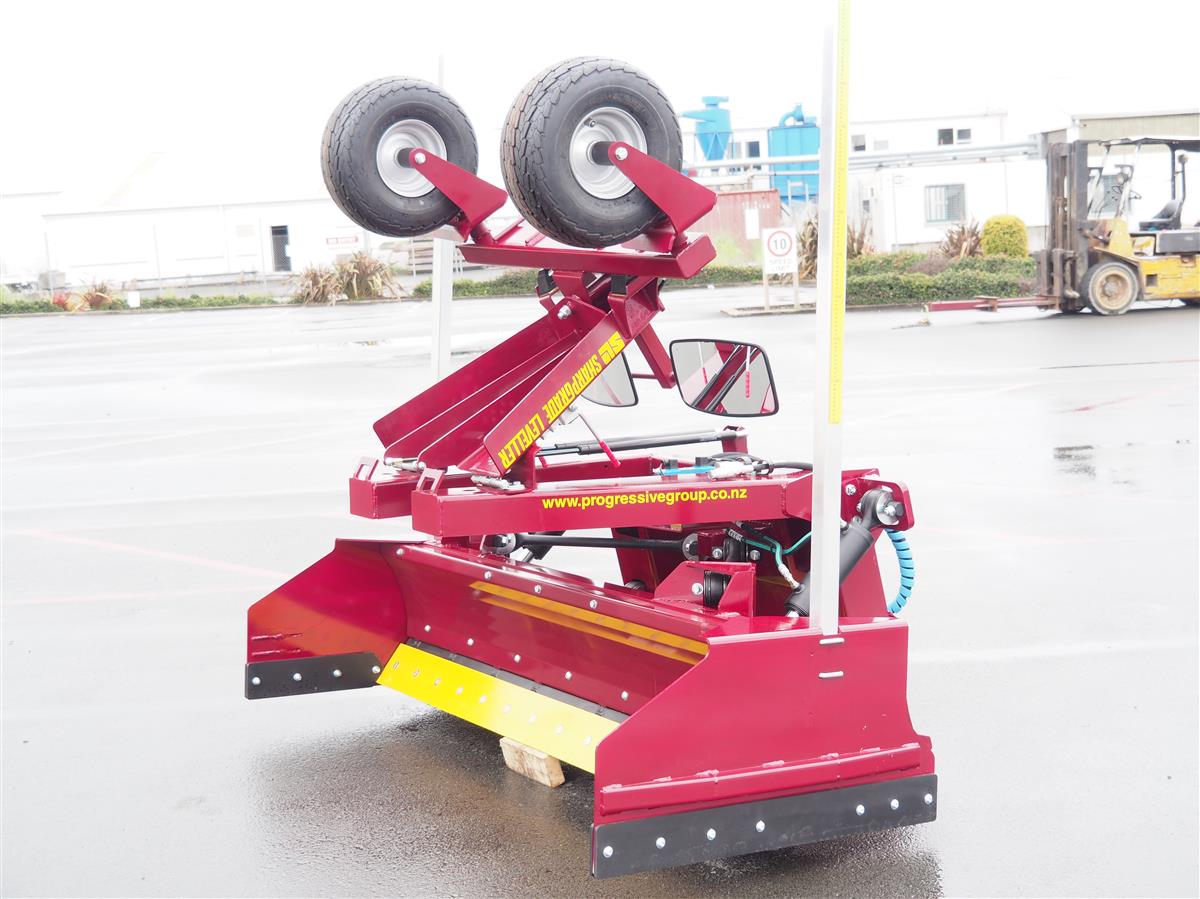

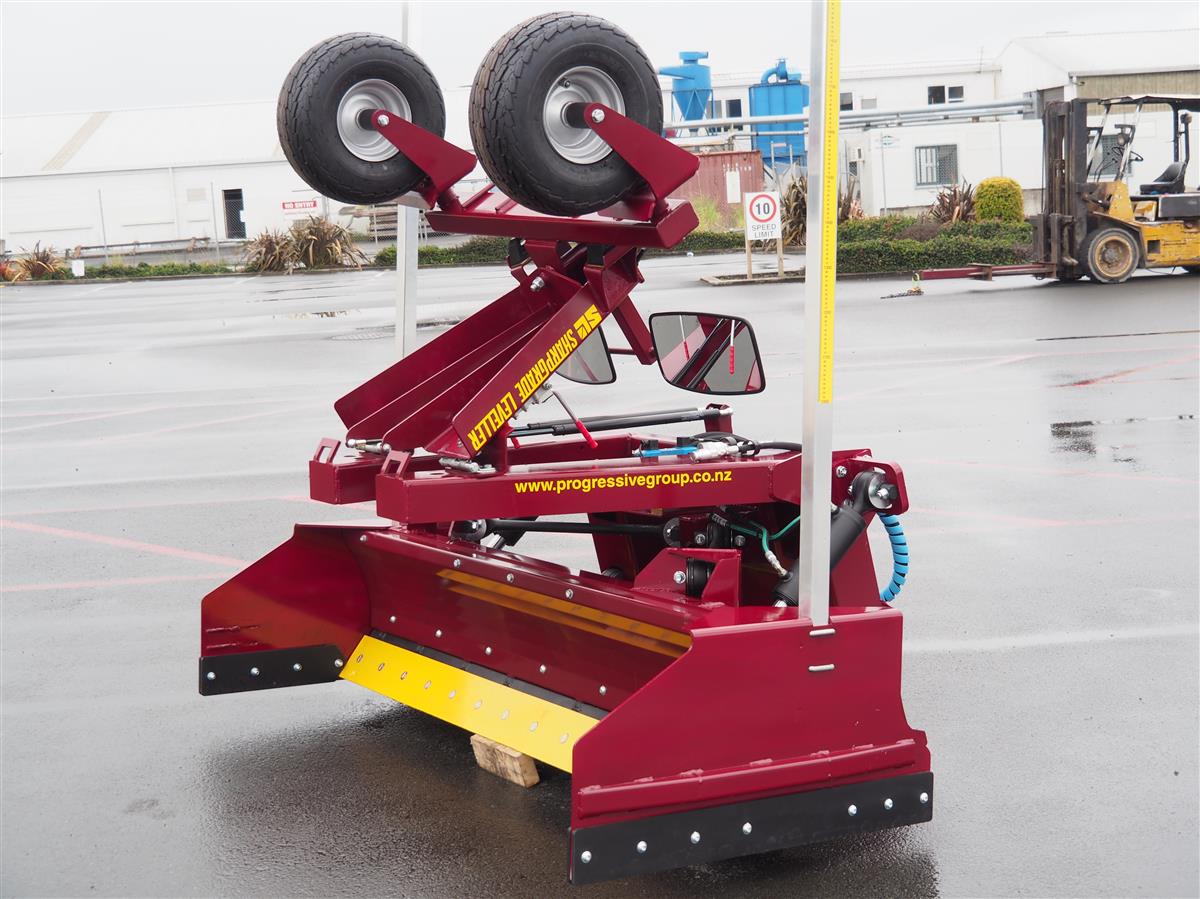

• Retracting wheels: Offer the ultimate in compact grading, get up close to walls, curbs, foundations or use as a bulldozer, while providing the shortest transport length in class.

• Adjustable hitch plate:  Sets SharpGrade perfectly level with boom fully down to provide the ultimate in rigidity.  This reduces track and tyre wear and boom and linkage wear as the SharpGrade is pushing on the front of the machine intead of transferring the load to the rear of the machine through the linkages.  This is especially important with vertical lift machines.

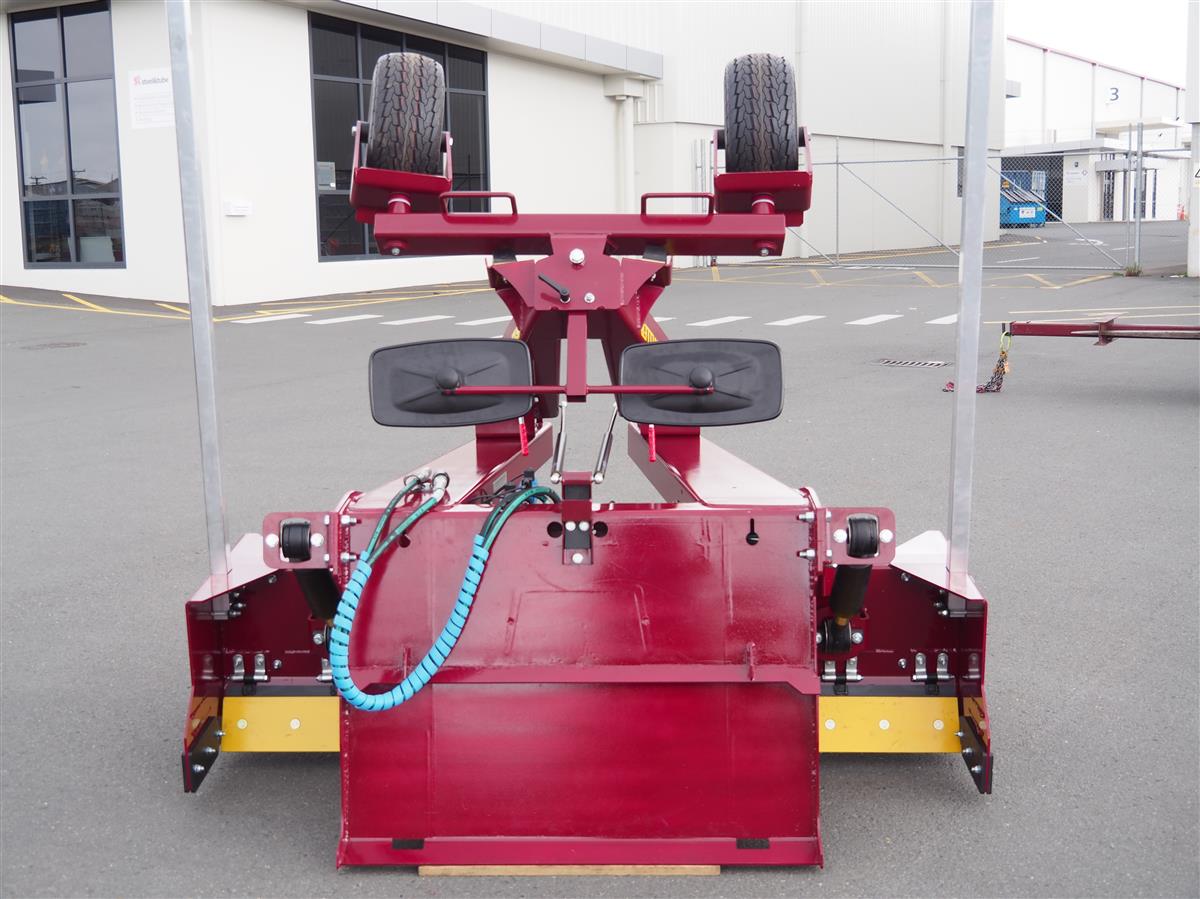

• Twin parabolic mirrors: See the front blade and both front wing tips for confident grading in confined areas, along walls, curbs or foundations.

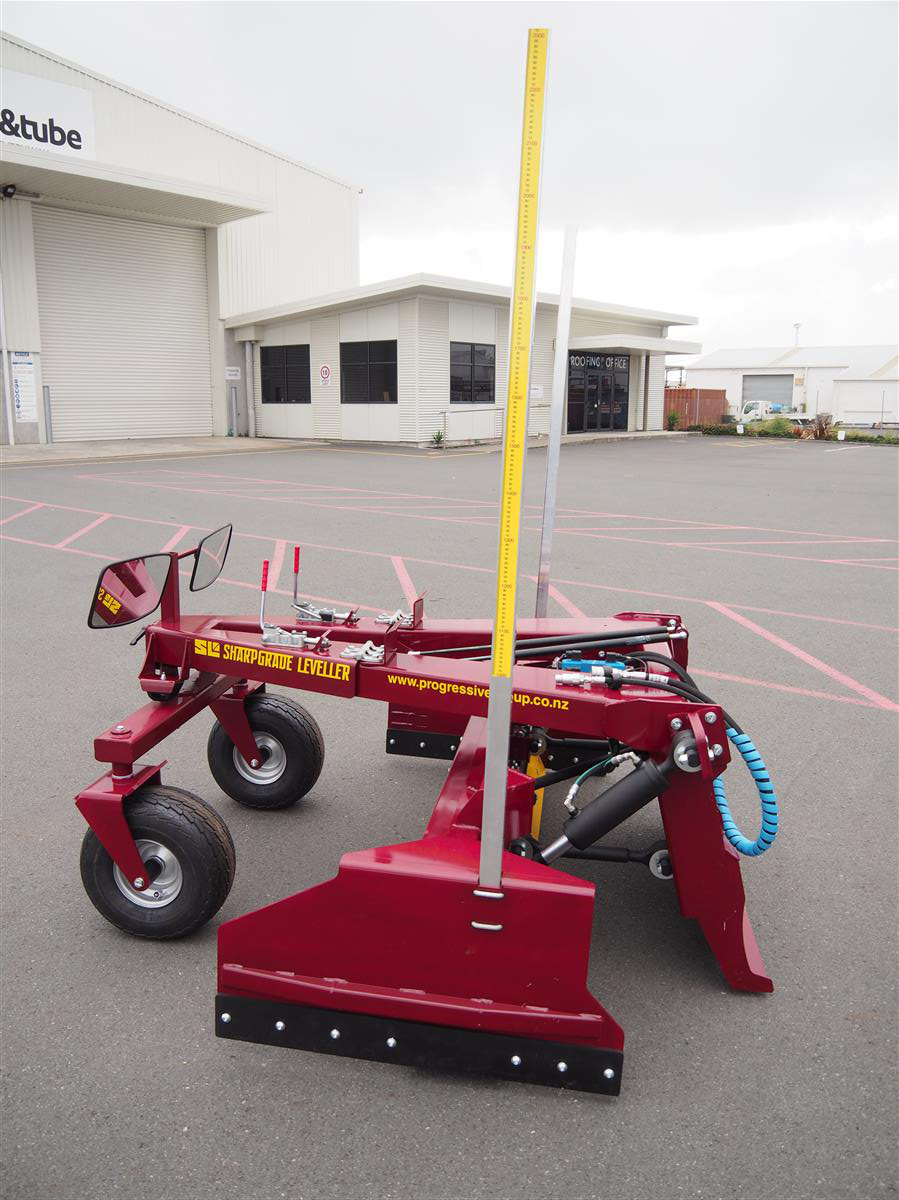

• Graduated laser poles: Quick, easy set up of laser receivers with our built in measuring tapes on our laser poles.  Available in metric and imperial dimensioning, no tape measure required.

OPTIONAL FEATURES

• Scarifiers: Used for compacted surfaces, tugnsten granule coated teeth protrude 50mm (2") below blade height, scarify forwards, trail in reverse, pin up when not in use or quickly remove
• Removable laser poles: quickly change from long to short poles for indoor work or working in  height restricted areas.  No tools required.

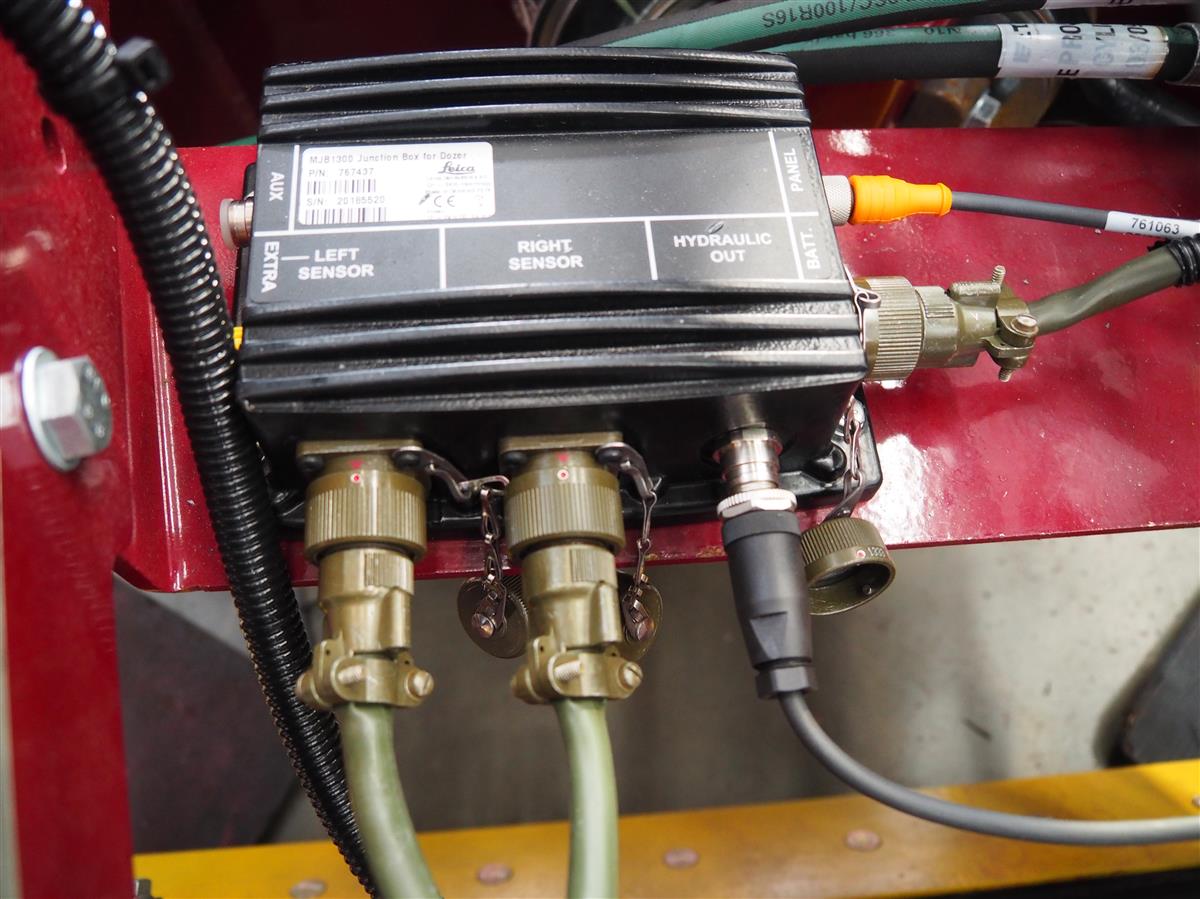

• Direct Connect:  Connecting the SharpGrade to the base machine via the 14 pin plug o nthe boom, the operator can directly control the SharpGrade from the extra buttons on the handles.  We have Direct Connect kits available for most brands, including Case, Cat, Deere, Kubota & Takeuchi
• QuadGrade Sonic system:  Reads a string line, curb lip, or the ground for grades not possible to achieve with a laser.  Plugs directly in and reads off the control panel.  Height and slope adjustable from cab.
• Other Control Systems: Available Topcon Ready or Leica Ready with Direct Connect

"The rigidity, visibility and fast response time are great.  After running level Bests for 6 years the SharpGrade is on the next level.  The SharpGrade is slick"

Jeremy LeVan, LeVans's Excavating, Ohio USA

"Since we upgraded to a 3DTPS SharpGrade 18 months ago our motor grader seldom leaves the yard.  The SharpGrade has significantly increased our finishng speed and accuracy"

Paul Scarborough, Scarbro Construction NZ

"The speed and accuracy of my sharpGrade is amazing.  I can consistantly trim and level 20,000 feet in an afternoon within 2/10".  Previously it took 2 guys 2 days to get less than half this accurate".

Bryce Merrick, Merrick Enterprises Idaho USA
